    Guitar Speaker Power Handling

    Great article from Guitar Planet by Kurt Prange

    Speaker power ratings are commonly misunderstood by guitar players.
    How can you make sure to choose guitar speakers to last a lifetime?
    22.07.2011
    By: Kurt Prange

    In Part 1, we examined the basics of how speakers work and how their power rating is determined. Now, letís look at things from the perspective of the guitar amplifier so that we can choose guitar speakers that will last a lifetime.
    Guitar Amplifier Power Output Ratings

    The power output rating of a guitar amp is mostly a ballpark figure for what it can put out. Amp specifications commonly list power output in a form similar to the following:

    Power Output: 50W into 8Ω at 5% THD

    This type of power output rating is obtained by using a sine wave from a signal generator (usually 1 kHz) as the input signal. The 5% THD (total harmonic distortion) figure means that the sine wave was able to generate 50W of power output with relatively low distortion (near the threshold of clipping or overdrive). THD measurements were one of the first conventions used to objectively compare the fidelity of audio amplifiers.

    Guitar amps are unconventional audio amplifiers. While most audio amplifiers are designed to keep distortion as low as possible, guitar amplification has evolved to where overdrive distortion is usually a requirement. For example, the Marshallģ JCM800 2203 is a 100W tube amp that has a highly regarded overdrive sound. The ownerís manual lists the power output as follows:

    Typical power at clipping, measured at 1kHz, average distortion 4% 115 watts RMS into 4, 8, 16 ohms. Typical output power at 10% distortion 170 watts into 4 ohms.

    This example shows that for many guitar amplifiers, the power output rating (100W in this case) is not a maximum power output rating, but more of a ballpark clean power output specification.

    RMS and Overdrive Distortion

    RMS (root mean square) is a kind of average value that can be used to compare the power dissipation from different signals on equal terms. For example, a 20 VDC power supply dissipates the same amount of heat across an 8 ohm resistor as a sine wave with an RMS value of 20 VAC.

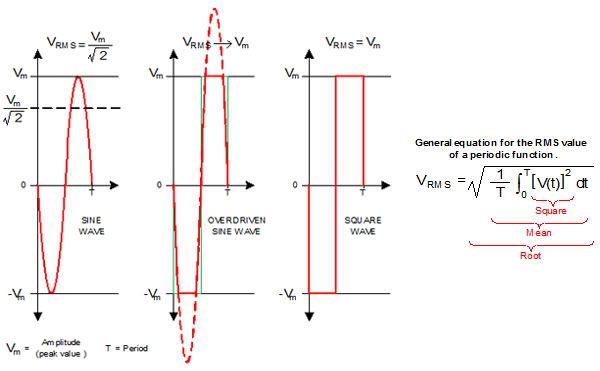

    Guitar amp output ratings are usually based on a sine wave at low distortion, but if the volume is turned up further or a gain boosting effect is used, the sine wave becomes more overdriven and can approach the shape of a square wave. The RMS value of a square wave is equal to its amplitude, while the RMS value of a sine wave is equal to its amplitude divided by the square root of two.



    Plugging the RMS values into the equation for power shows that a square wave dissipates twice as much power across the same load as a sine wave with the same amplitude.



    This simplified overdrive distortion model illustrates how the 100 watt Marshallģ amp which puts out 115 watts at 4% THD could put out an additional 50 watts at 10% THD.

    Tube vs. Solid State Outputs

    Many tube guitar amps use output transformers with secondary taps connected to an impedance switch allowing for the same power output when connected to 4, 8 or 16 ohm load impedances. Solid state amps do not use output transformers and do not have the same power output when connected to different load impedances.

    For tube outputs, itís important to match the load impedance to the ampís output impedance. For solid state outputs, itís important to use a load that is greater than or equal to the rated minimum load impedance and to know the ampís power output at that load. For example, the Fender M-80 is a solid state amp rated for 69 W(RMS) at 5% THD into 8 ohms and 94 W(RMS) at 5% THD into 4 ohms (the minimum load impedance).

    With solid-state amps, overdrive distortion generated by the power-amp is not generally considered musically pleasing, so most people will not exceed the ampís low THD power rating. Tube power amps, on the other hand, are often played well beyond their low THD rating.

    Amps with Multiple Speakers

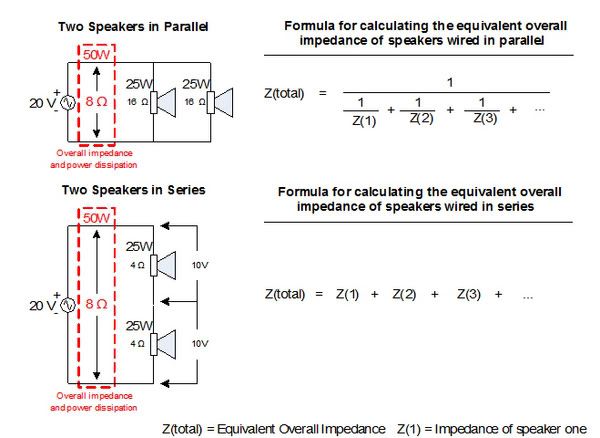

    When an amp uses multiple speakers the output power is divided between them. The nominal impedance of each speaker should be the same value so that power is distributed equally and so that the output impedance of the amplifier can be matched.



    Choosing Guitar Speakers to Last a Lifetime

    There is no standard method used by all amp manufacturers when selecting an appropriate speaker power rating. If you want to choose a speaker to last a lifetime, youíll want to choose a speaker that can handle the maximum amount of preamp and power amp overdrive distortion that can possibly be put into it and safely avoid exceeding the speakerís thermal limits. In the case of single speaker setups, this means choosing a speaker rated for at least twice the rated output power of the amp. For multiple speakers, choose twice the rated power that would be distributed to it.

    You might decide to go with a lower power rating because you know that youíll never be cranked at full power and love the sound of a lower power rated speaker. In the same way you may choose a speaker with a much higher power rating because of the way it sounds.

    Guitar Speaker Power Handling (Part 2) - Guitar Planet Magazine
    Last edited by LVC; 09-14-2011 at 07:26 AM.
    BOUTIQUE GEAR TALK
    Gear, God & Country
    The Soul Cruisin Band
    WaZaap.com Weird News

    "I'd rather listen to John Lee Hooker play one note rather than those tasmanian devils play a gazillion ones in the key of 'stupid'..."
    Carlos Santana

  2. #2
    Senior Member CharlyG's Avatar
    Join Date
    Aug 2011
    Location
    West Hiils, Ca
    Posts
    390

    Re: Guitar Speaker Power Handling

    Great stuff man! I always tell folks that the key idea with impedance is matching. ANY mismatch is like driving your car with the brakes on, it generates heat, which wears stuff out faster!

    In the article, I would bold the part that says SS amps don't have output transformers!


    Anyways, this place is cooler and cooler all the time.

  3. #3
    Junior Member
    Join Date
    Sep 2011
    Location
    USA, CA, Solano County
    Posts
    2

    Re: Guitar Speaker Power Handling

    Wow.!
    That is a Real Nice tutorial from Amplified Parts. Does a nice job of showing the difference in amplitude between "clean" power and "distorted" power.
    Thanks
